Product Features
Power: 700/ 800/ 1000/ 1200kg
- Integrated circuit design, safe to use & easy to repair
- Service life of gear exceeds 40,000 times
- Super-silent gear box, no noise will be made
- Lifting force of motor is high, usually it is about 5% higher than specs

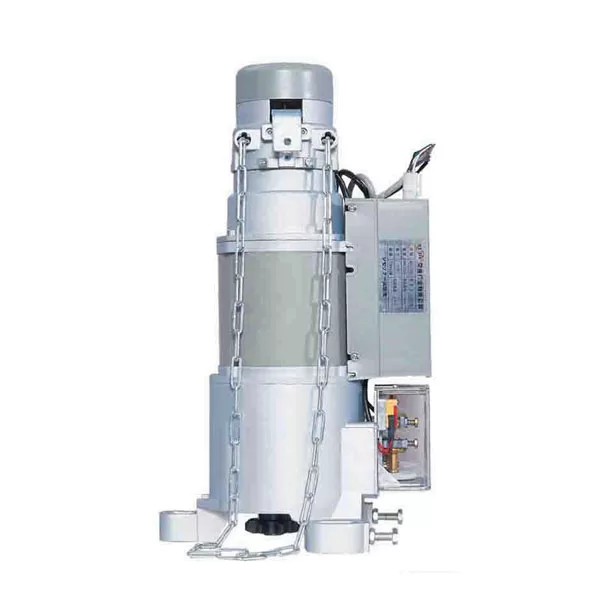

Standard Type Roller Shutter Opener (110V ~ 220V, 50 ~ 60Hz)
| Modal | Type | Rated Power (W/A) | Horse Power | Maximum Load (kg.f) | Output RPM Minute | Maximum Lifting Height (M) | Chain Type | Suitable Door Size (M) (Thickness 1MM) |
Reduction Gear Box Type |
|---|---|---|---|---|---|---|---|---|---|
| BD-700A | A | 350/1.65 | 3/4 | 700 | 4M | 7 | 12A | 6 x 6 | 3 |
| BD-800A | 350/1.7 | 4/5 | 800 | 4M | 7 | 12A | 7 x 6 | 3 | |
| BD-1000A | 450/2.1 | 1 | 1000 | 4M | 7 | 12A | 8 x 6 | 3 | |
| BD-1200A | 480/2.1 | 1 | 1200 | 4M | 7 | 12A | 8.5 x 6 | 3 | |
| Bracket | Standard Specs: (1) Standard Size: 630*380 (2) 132mm ring, 3/4 inch 50 teeth, 68 links chain (3) Ring Type: Triangular & Octagonal (Optional) |
||||||||
